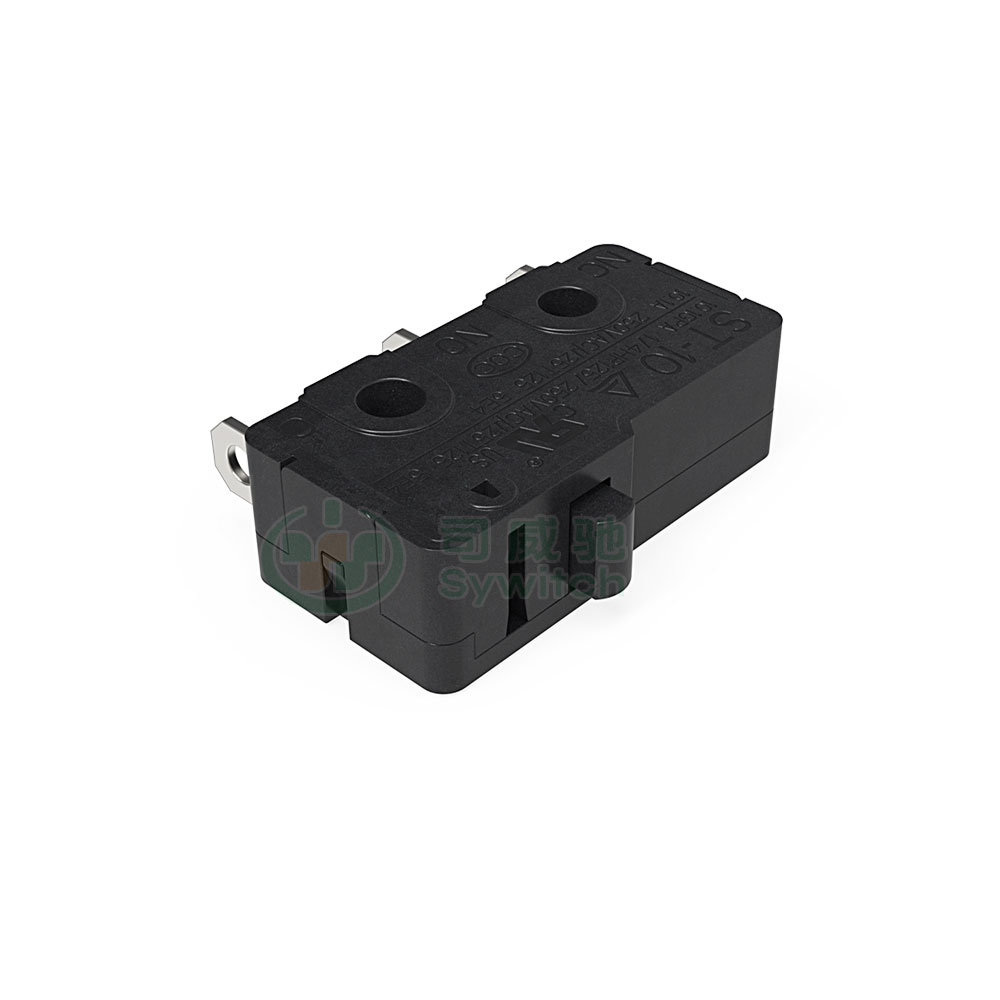

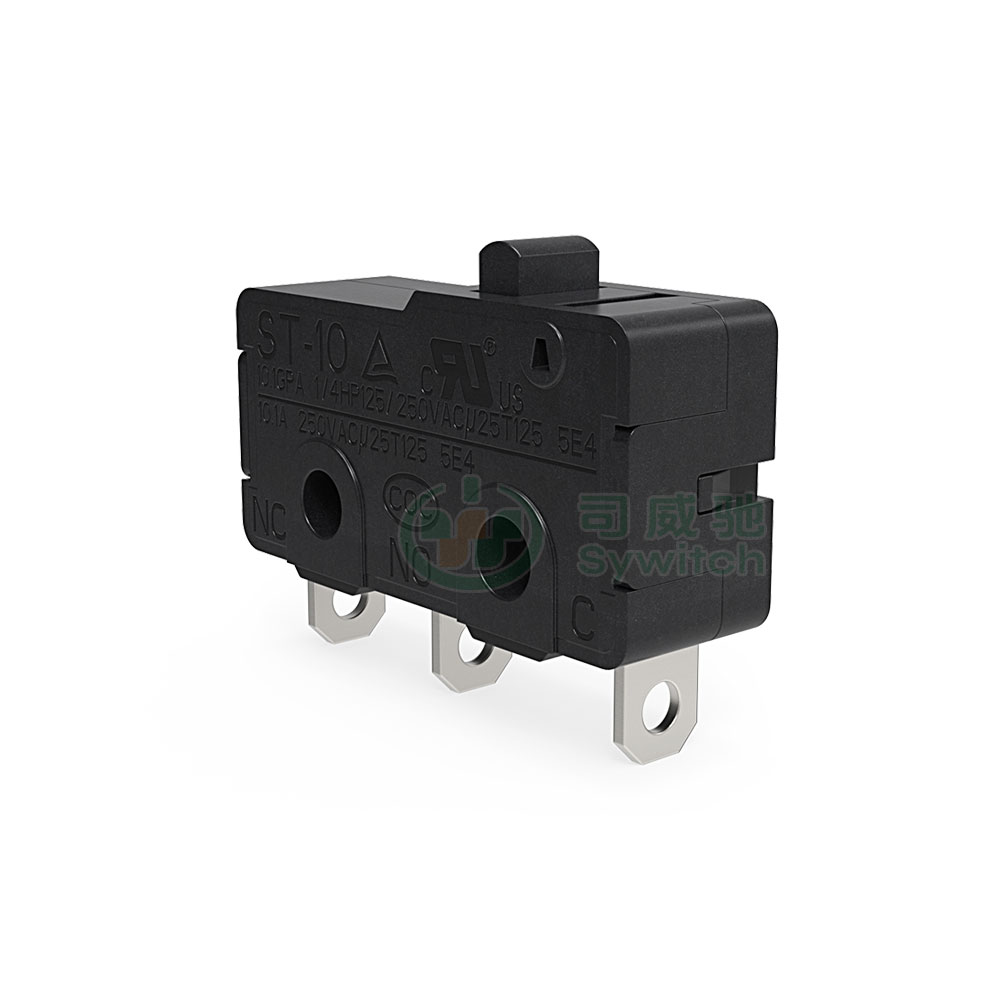

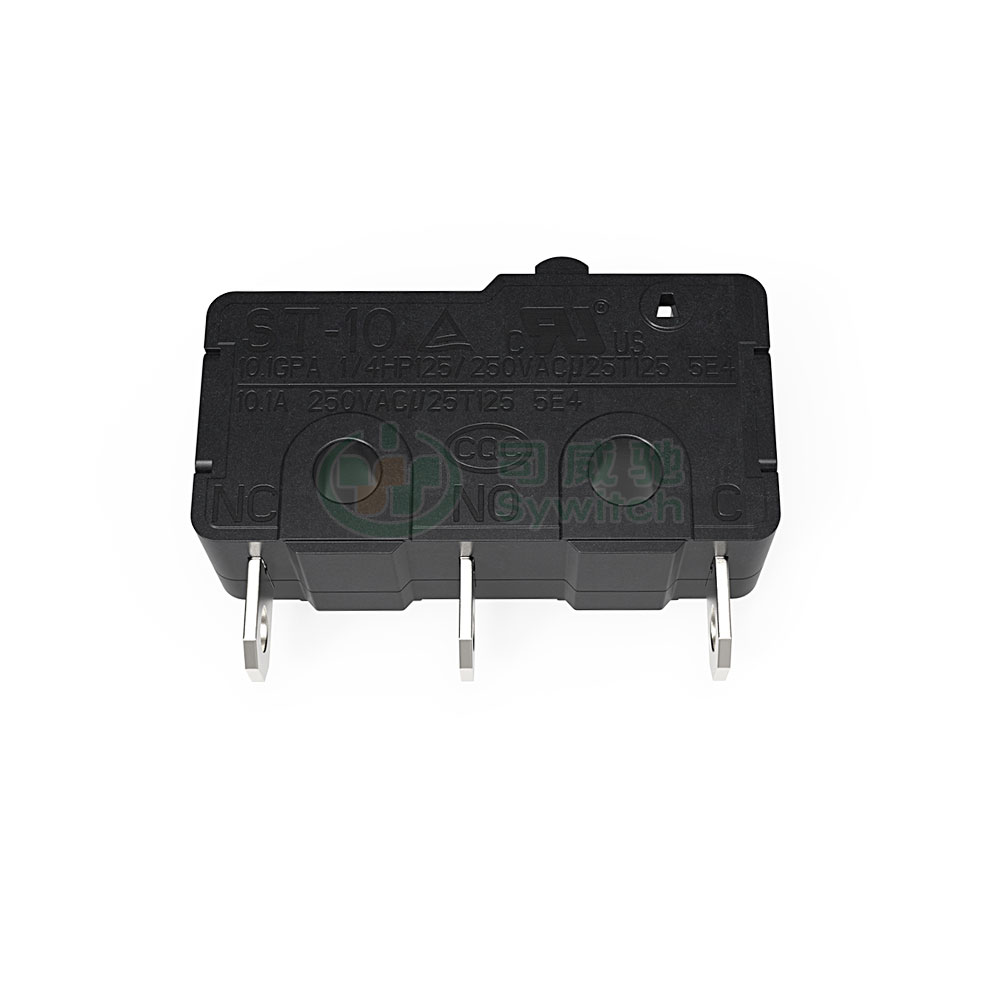

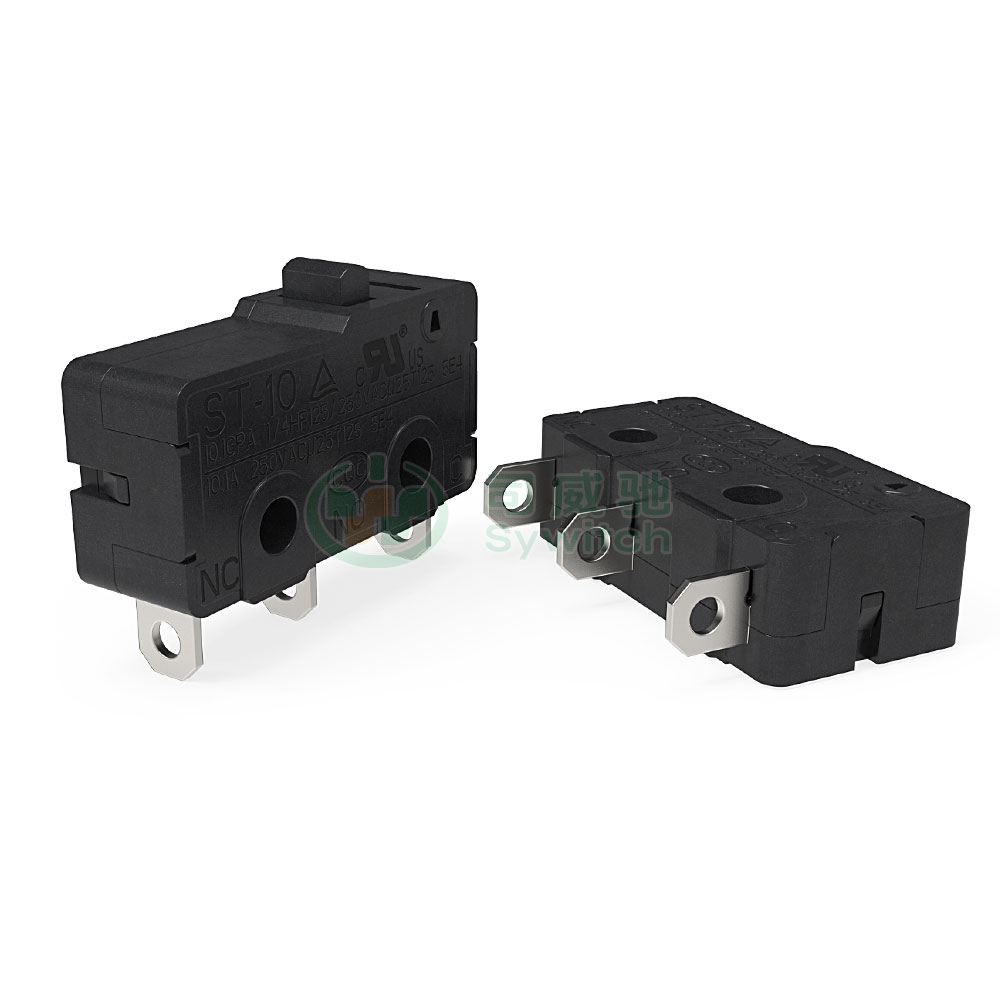

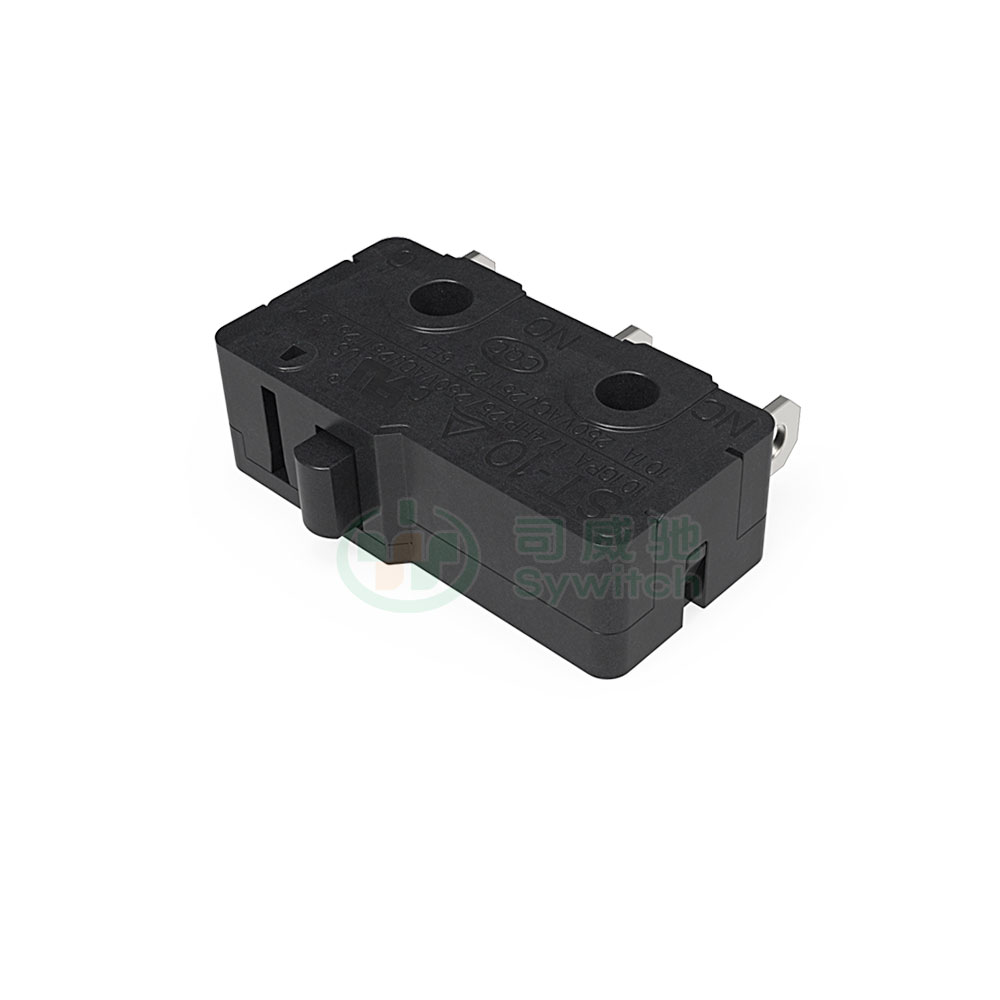

Safe and reliable 10.1A Double pole micro switch（SPDT)

Main body size 20*6.4*10.7mm

Solder Terminal,plug-in terminal block

Double pole micro switch（SPDT）

Wear-resistant And High Temperature Resistant

Accept 10A 250VAC

Optional Actuators and Terminals available

Reference Price:0.14 USD/PCS

Enquire now

*This micro switch supports the selection of terminal type and can be equipped with optional levers and rollers. *The above price is ex-factory price and does not include shipping and tax fees. Additionally, please note that the actual price may vary due to international exchange rate fluctuations. *For product improvement or other reasons, the product specifications and accessories in the catalog may be changed as needed. Please confirm the actual product specifications with our sales representatives when purchasing.

Product Features：

Solder Terminal, Low operating force, Sensitive trigger, excellent dust prevention, reliable electrical contact, 10A current, long service life.

Application Fields：

mechanical equipment, household appliances, kitchen appliances, bathroom appliances, door locks, automobiles, etc.

Mechanical And Electrical Data

Attribute Value
Attribute Value

Contact Arrangement1NC+1NO + 1COM
Contact ConfigurationSPDT
ContactsHigh Conductivity Silver Alloy
TerminalsSolder Terminal, Copper alloy, Silver plated
Contact Current10A 250V AC
Insulation Resistance100MΩ min. 500V DC
Contact Resistance100mΩ max
Operating Temperature-25~ +125℃ (No Icing)
IP RatingIP40
Electrical protection classesCLASS I
Mechanical Life＞2000000 times (60 times/min)
Electrical Life＞50000 times (30 times/min)
Storage Temperature＜85%RH

Optional Type For Microswitch

Double Pole SPDT Double pole SPDT MicroSwitch

Normally Closed SPST NC Normally closed SPST NC MicroSwitch

Normally Open SPST NO Normally open SPST NO MicroSwitch

Optional Terminals For Microswitch

PCB Terminal PCB Terminal MicroSwitch

Solder Terminal Solder Terminal MicroSwitch

Terminal Quick-connect Terminal Quick-connect MicroSwitch

PCB Right Angle Terminal PCB Right Angle Terminal MicroSwitch

PCB Left Angle Terminal PCB Left Angle Terminal MicroSwitch

Optional Actuators For Microswitch

Plunger Actuators Plunger Actuators Microswitch

Flat Actuators Flat Actuators Microswitch

Roller Actuators Roller Actuators Microswitch

dummy Roller Actuators Dummy Roller Actuators Microswitch

Microswitch Construction And Electrical Functions

Microswitch SPDT Spring Plate Construction And Electrical Functions

Overall Dimensions And Action Characteristics

Safe and reliable 10.1A Double pole micro switch (4),

Installation Precautions

During installation, use M3 screws and match them with flat washers and spring washers for tightening.

When installing, please use a tightening torque of 0.39~0.59N.m to ensure the installation is secure and does not damage the structural strength of the microswitch.

According to EN61058-1, the minimum insulation protection thickness of this microswitch should be 1.1mm.

The minimum spatial distance between the terminal and the mounting plate should be 1.9mm.

During actual assembly, if the insulation distance of the components cannot meet the above requirements, please select a microswitch with an insulation shield or use an insulation barrier to ensure the insulation distance.
